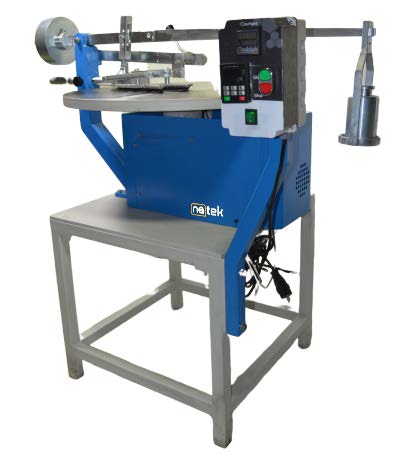

Abrasion Bohme Tester

STANDARDS: EN 1338, 1339, 1340, EN 13892-3, EN 14157

The instrument measures a volume loss in a specimen under abrasion test and it’s used in tests such as: - paving stones - concrete slabs - slabs made of natural rocks - natural stone slabs.
The apparatus is basically composed of cast iron horizontal disc with a speed of 30 ± 1 rpm and a diameter of 750mm furnished of a 200mm test track to position a specimen.

Control panel with digital revolutions counter with automatic stop after 22 rotations.

Abrasive Sand is must be ordered separately.
