STANDARDS: TS EN 1339, 1367-1; TS 2824

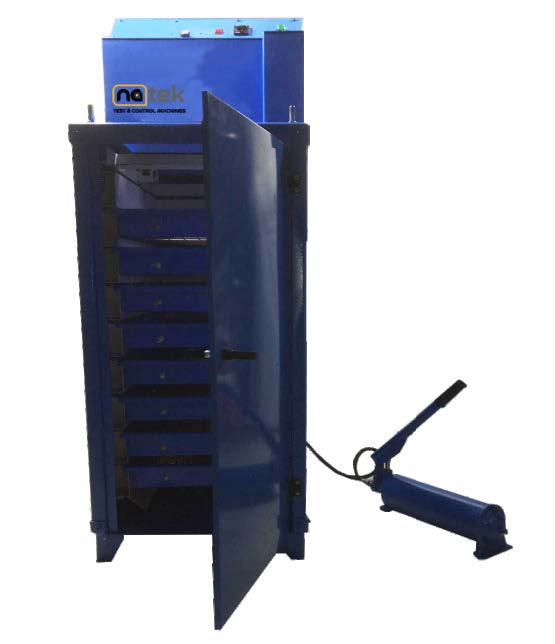

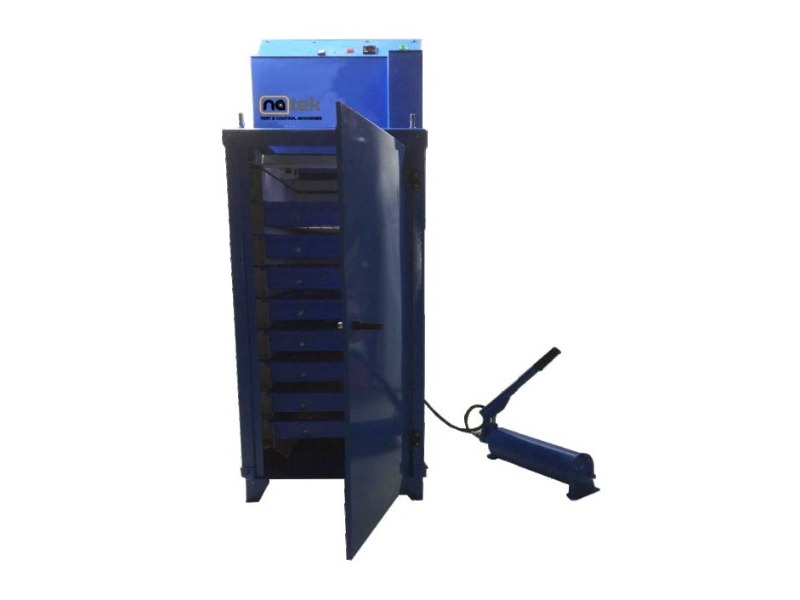

Ideal for sizing large quantities of crushed stones, sand, gravel, slag, coal, coke, ores, pellets and similar materials.
The screen shaker has a capacity of about 30 lt (60 ÷ 70 Kg) of sample. For use with 40x60 cm dimension screens.
Various sizes of screens are available on request.
Capacity is 6 sieves and lid. The shaker is ﬁtted with timer which can be pre-set for any duration up to 99 minutes.
Supplied with dust cup. Sieves should be ordered separately.
Safety Doors, upper and frontal, complete with micro-switch, complying to CE Safety Directive. If the door is opened while the shaker is working, it automatically stops. The doors also protect from dust. Safety Doors (should be factory installed) should be ordered separately.
Security Cabinet, steel made with micro-switch, complying to CE Safety Directive, lined with sound-prooﬁng material for noise reduction. If the door is opened while the shaker is working, it automatically stops. The cabinet also protects from dust.
