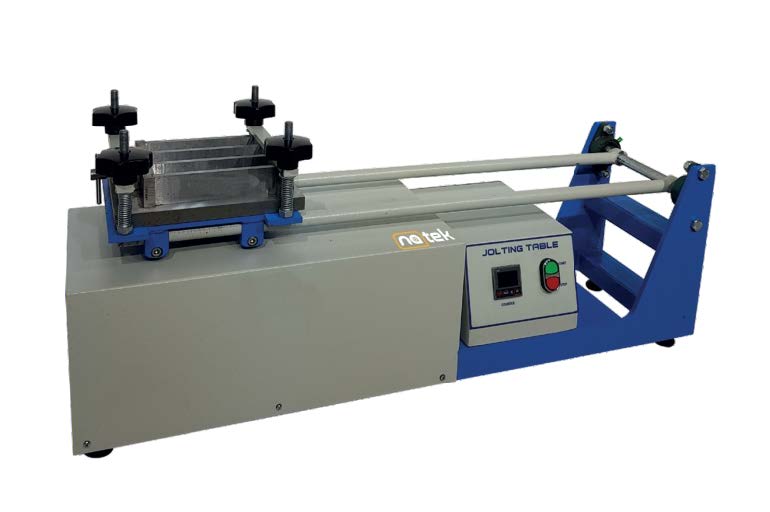

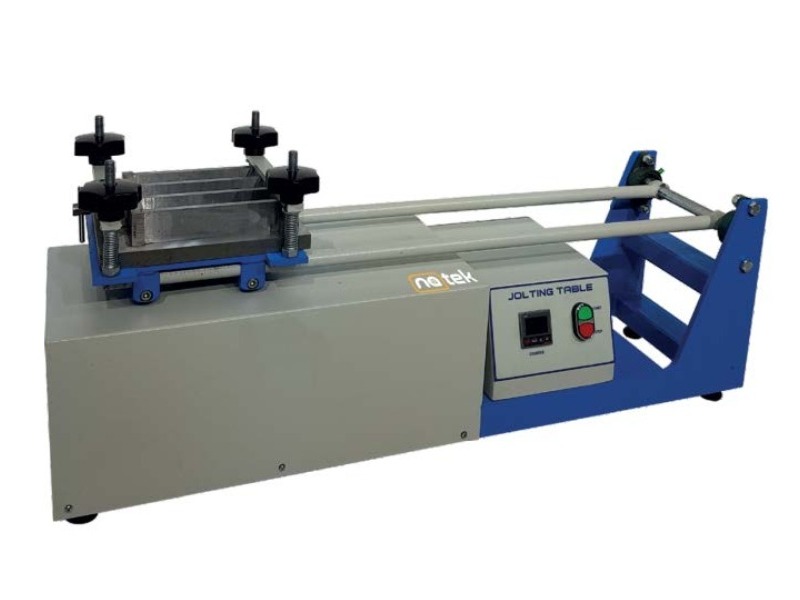

Jolting Table Aparatus

STANDARDS:  EN 196-1, EN ISO 679

Used to compact cement mortar prisms 40x40x160 mm in the three gang mould containing cement specimens. The apparatus, consists of a table holding the mould, seated on a or tating cam driven at 60 r.p.m.

The drop height is 15 mm.

The  machine  is  equipped  with  a  digital  counter  which provides automatic shut off at end of preset drop numbers.

Rapid mould lock and release system allows easy and quick operation.

The supporting frame of the machine has been designed to ensure precise dimensions, table flatness, correct centering of the three gang mould on the table.

The motor and gearbox assembly is enclosed in a protective housing, which promotes user safety (the moving parts are inaccessible) and long life for the gearbox.
